Komatsu Friction Disc & Plate

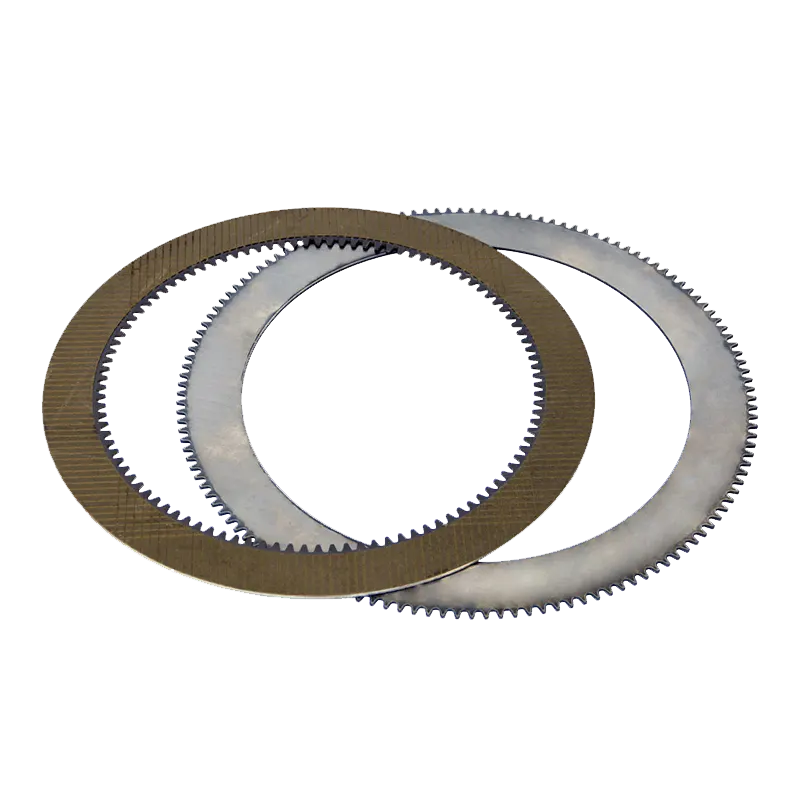

Replacement friction discs and steel mating plates for Komatsu wet brakes and transmissions. Send a Komatsu part number for matching.
Part-number tables are identification aids. Final supply should be confirmed against application, dimensions, material and current drawing/sample requirements.
Selected reference numbers
| Part No. | Material | OD mm | ID mm | Thickness mm |
|---|---|---|---|---|
| 3EE-15-12960 | STEEL | 190 | 128.5 | 1.9 |
| 3EE-15-21230 | STEEL | 162 | 100.3 | 2.0 |
| 3FD-15-21570 | PAPER | 155.7 | 87.9 | 2.6 |
| 424-15-12710 | BRONZE | 335 | 264 | 5.0 |
| 423-33-21250 | STEEL | 383 | 276 | 6.0 |
| 561-15-42710 | GRAPHITE | 475 | 389 | 5.4 |
| 562-15-12860 | BRONZE | 530.2 | 434.1 | 5.2 |
