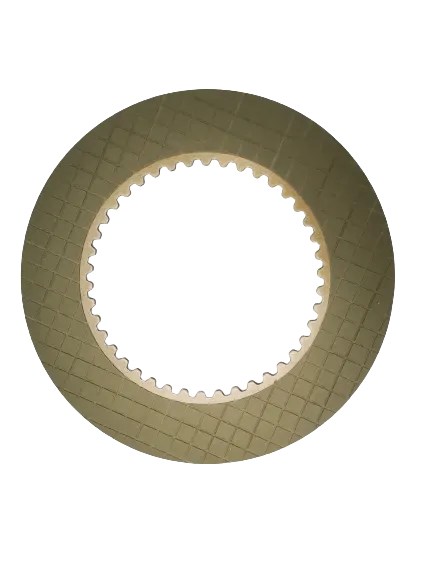

507-275-673 Kessler Friction Disc
Legacy ALMAX catalog data lists 507-275-673 as a paper component with 340 mm OD, 206 mm ID and 5.5 mm thickness. For a purchase decision, confirm the part number against the machine/axle/transmission model, disc stack position, dimensions and friction material.
Specification reference
| Brand reference | Kessler |
|---|---|
| OEM / Part Number | 507-275-673 |
| Material | PAPER |
| Groove | WAFFLE |
| Outer diameter | 340 mm |
| Inner diameter | 206 mm |
| Thickness | 5.5 mm |
| Teeth / lugs | 42 |
| Tooth / lug type | INT |
| Alternative references | 507275673; 507275-673; 1K507275673 |
Specification data is a catalog reference, not a substitute for application verification. Confirm dimensions and material before production.
Before you order
One wrong plate can stop a rebuild. Send the information you already have; we will use it to narrow the match.
- Part number and quantity
- Machine / axle / transmission model
- Photo of both disc faces
- OD, ID, thickness and tooth count
- Drawing or sample when available
What matters beyond the number
FAQ about 507-275-673
Do you supply 507-275-673?
ALMAX can review inquiries for 507-275-673. Availability and final specification are confirmed against your application, quantity, photo, sample or drawing before order acceptance.
How do I confirm 507-275-673 before ordering?
Send the equipment or axle model, quantity, and any available photo or drawing. For rebuilds, OD, ID, thickness, tooth/lug count and friction material are especially useful.
Can you manufacture from a sample or drawing?
Yes. Drawing- and sample-based production is available for friction discs and mating plates, subject to engineering review and specification confirmation.
